Stack Testing Sampling Equipment

Equipment 1

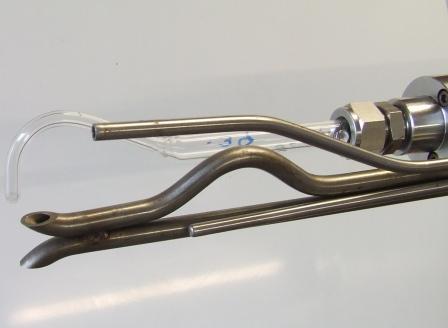

Heated sampling probe with glass liner and nozzle. Pitot attached


Equipment 3

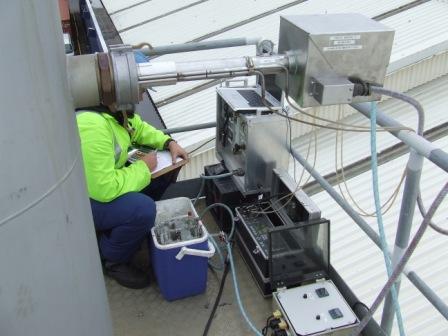

Heated probe in the stack connected to condenser and sampling pump box. A combustion gas analyser is measuring O2,CO2,CO,NO and NO2


Equipment 4

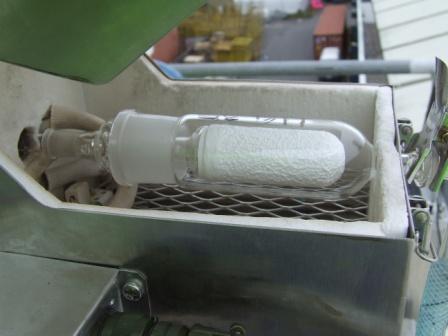

Heated filter box fitted with a 30mm x 80mm glass fibre filter.


Equipment 5

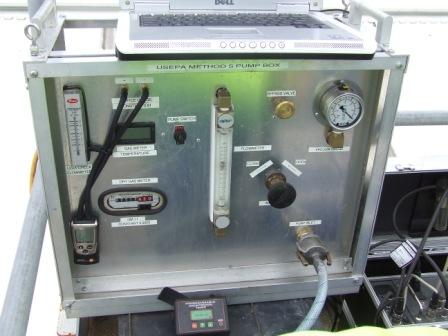

Pump box fitted with all of the necessary controls to allow isokinetic sampling. Sampling rate can be calculated using either the flowmeter, gas meter or orifice gauge.


Equipment 6

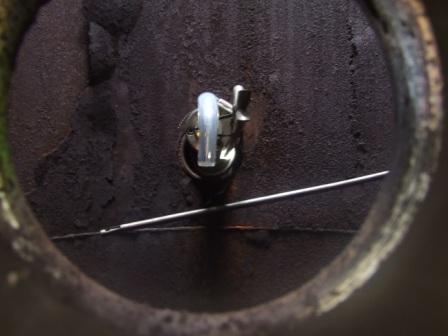

Sampling probe in the stack, looking in from the opposite port.


Equipment 7

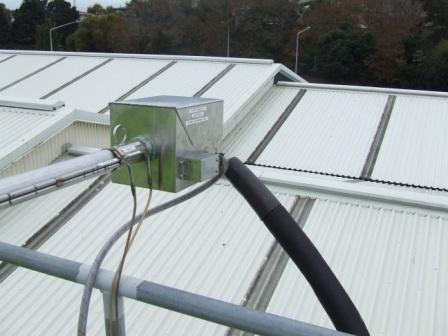

Heated probe fitted with a heated teflon line to prevent the sampled gas from condensing as it travels to the condenser.


Equipment 8

Stack testing is very labour intensive. The technician will manually monitor the sampling rate for each run conducted.
